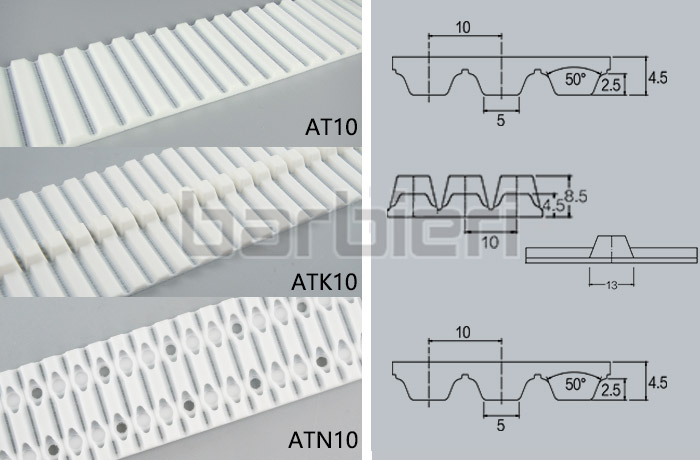

Differences in the tooth profiles of timing belts AT10, ATK10, and ATN10
AT10, ATK10, and ATN10 have the same pitch. Many customers do not know how to distinguish them. AT10, ATK10, and ATN10 are three different timing belts. They each have their own characteristics and are suitable for different transmission demand scenarios. When choosing, you should choose more reasonably according to the specific transmission requirements and working conditions.

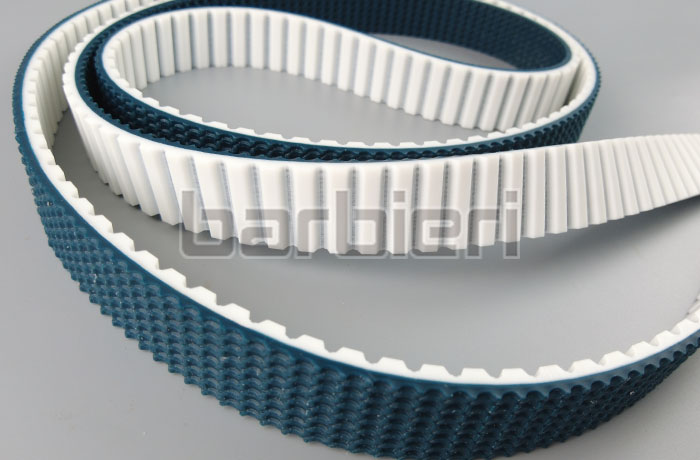

AT10 Timing Belt is a basic tooth profile, standard trapezoidal teeth, 10mm pitch, standard tooth profile and structure, standard load-bearing capacity and transmission accuracy, and is widely used in various equipment and machinery that require standard transmission accuracy.

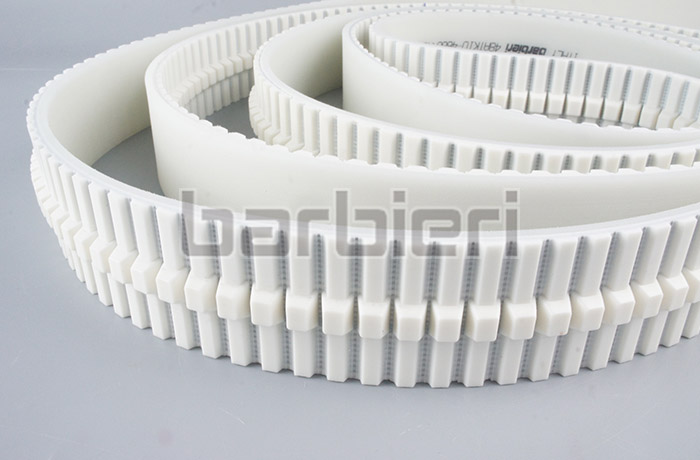

ATK10 Timing Belt is based on AT10, with optimized tooth profile and added guide strips, and has self-guided characteristics. The timing belt is integrally formed during the manufacturing process, and an integrated V-shaped guide rail is extruded. It is used with the matching non-ribbed synchronous pulley (grooved synchronous pulley) to effectively prevent the timing belt from running off during the transmission process and improve the transmission accuracy. It is suitable for high-speed operation and occasions requiring high-precision transmission.
The timing belt with built-in tracking guide rail has greatly enhanced the stability and reliability of transmission through the innovative V-shaped guide rail design, providing a strong guarantee for the efficient and smooth operation of various mechanical equipment.

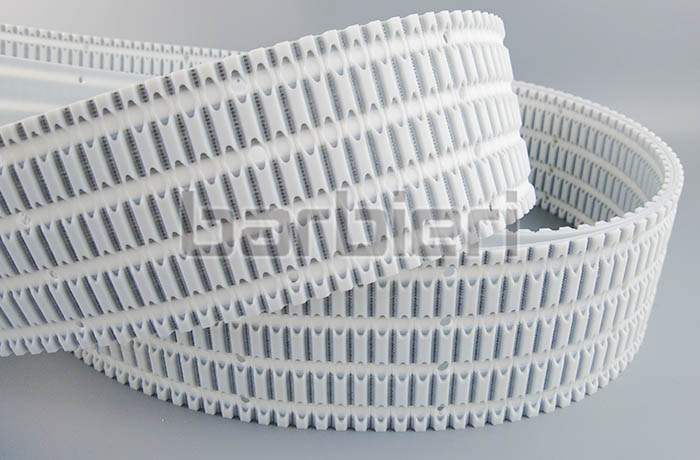

ATN10 Timing Belt is an advanced timing belt positioning transmission system designed for high-precision transmission. Its uniqueness lies in the preset diamond nut holes on each tooth surface, which are holes with special molding process, and the spacing is accurate and error-free.
After punching, different tooling accessories can be fixed with screws and simple hand tools. It is easy to install and has high transmission accuracy. It is the preferred choice for most automation equipment and manipulator transmission equipment.
Customizable parameters of ATN10 timing belt:
1. Open belt/joint belt/seamless belt can be provided.
2. Widths of 25mm, 50mm, 75mm, and 100mm can be provided.
3. Embedded nut assemblies in brass or stainless steel are available for selection.
